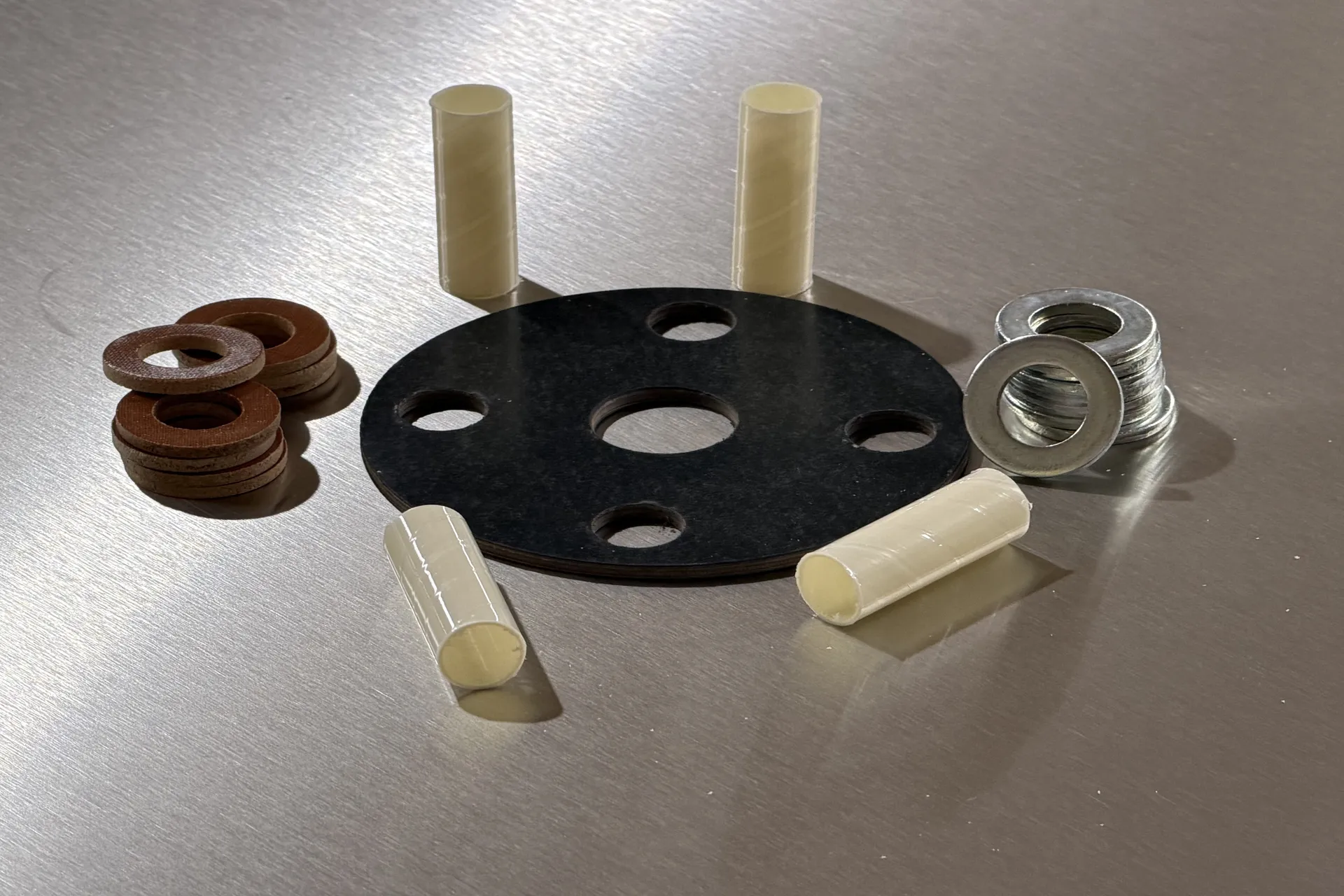

Flange insulation kits
Flange insulation kits are deployed where cathodic corrosion is a concern. These gaskets are in accordance with ANSI B16.5 specifications and can be supplied individually or assembled with sleeves and washers in kit form.
Uncompromising cathodic protection
Our high-performance insulation products are manufactured from the highest-quality materials to ensure exceptional chemical stability, low water absorption and superior dielectric strength. Regularly used within refinery and chemical plant applications, these mission-critical components can withstand extreme levels of hydrocarbon, weathering and saltwater exposure.
Flange insulation kit reference guide – explore common designs, styles and sealing elements
Style D
Designed to fit the ring groove of RTJ flanges. Insulation gaskets in oval cross-section are machined from a fabric-reinforced phenolic material to ASME B16.20 specifications.
Style F
Raised-faced flange gaskets are offered in neo-faced phenolic, G-10 with elastomer seal rings, or compressed composite with strong dielectric properties.
Style E
Full-faced bolt-holed gaskets designed to ensure high-performance sealing and alignment. Style E gaskets are offered in neo-faced phenolic, G-10 with elastomer seal rings or compressed composite with strong dielectric properties.
Contact our flange insulation kit experts to discuss your requirements.
We look forward to collaborating with you.
